Load monitoring system/tonnage meter
Functionalfeatures:1、Monitorthetonnageduringthestampingprocessofthepunch;2、Twotypesofdisplay,waveformandnumericalvalue,enabletheoperatortohaveaclearunderstandingofthetonnagestatusofthepunchingmachinem...
Functional features:
1、Monitor the tonnage during the stamping process of the punch;
2、Two types of display, waveform and numerical value, enable the operator to have a clear understanding of the tonnage status of the punching machine mold at a glance;
3、The monitoring channels are divided into two types: 2 channels and 4 channels;
4、Suitable for low to high speed punches;

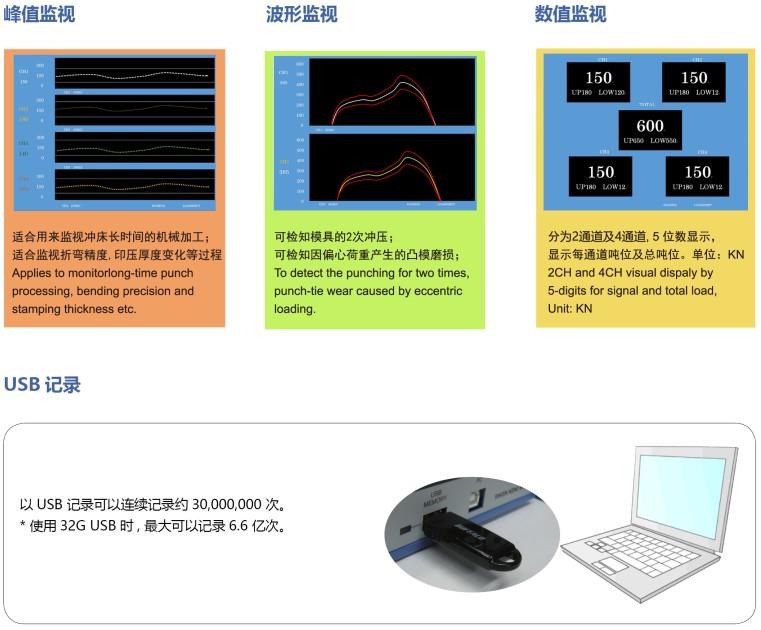

5、The monitoring modes include peak monitoring and waveform monitoring;
6、Supports 32GB USB flash drives, capable of recording approximately 30 million times continuously and 660 million times;
7、Monitoring methods (standard value monitoring/previous value monitoring);

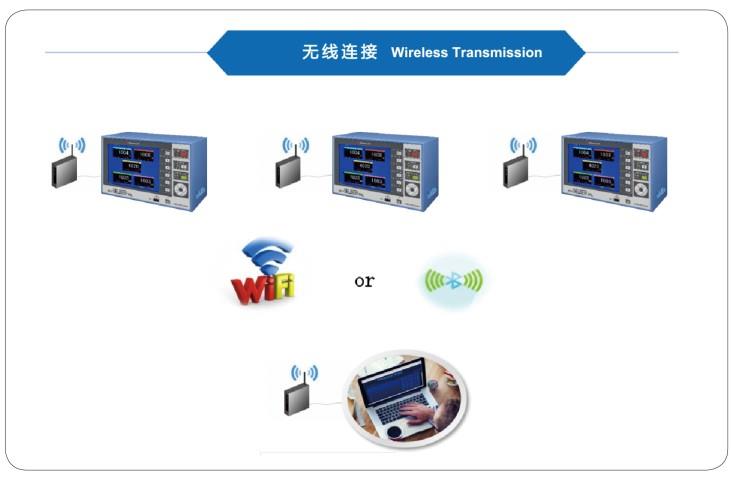

8、Bluetooth transmission.
