Press safety module

Low cost, multifunctional, simple wiring, easy to achieve complex safety control of the press!

1 Basic Introduction

1.1Compliant with standards

This safety module, including emergency stop monitoring, safety door monitoring, safety grating monitoring, and cam detection, meets the requirements of EN ISO13849-1 PL e.

Two handed button monitoring complies with the requirements of BS EN574-1996 IIIC.

1.2 use to

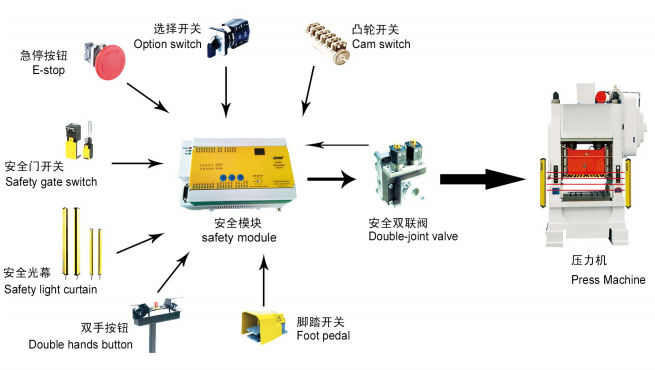

The wiring is simple and easy to operate, and the safety module is mainly used for safety control of machine tools and bending machines:

Multiple emergency stop monitoring.

U 2-way safety door or safety hydrant monitoring.

U 2-way safety grating monitoring.

U 1-way dual hand monitoring, 1-way foot monitoring.

U 1-way cam signal detection.

Detection of overtravel and broken shaft signals.

U safety dual valve detection.

U cam switch detection.

U inch, single, continuous function.

U Safety circuit in accordance with EN60204-1.

U meets the requirements of GB 27607-2011 and GB 28243-2012 standards.

1.3 Characteristics

The raster operation has both "automatic" and "forced manual" reset modes.

U relay contact output: 2 sets of normally open (N/O) safety contact outputs, and 1 set of normally closed (N/C) auxiliary contact outputs.

U ordinary transistor output (emergency stop, grating, safety door, both hands).

Provide feedback control loop for monitoring external contactors/relays (dual valve).

U has input and output status indicator lights.

U Power on input port self check function.

call the police：

① Power on self test, port short circuit alarm

② Overtravel alarm

③ Axis breakage alarm

④ Cam switch abnormal alarm

This security module meets the following security requirements:

The U circuit is equipped with self monitoring redundant circuits and uses a dual MCU control system.

Even if one component is damaged, the safety function remains effective.

The safety function of the safety module can be automatically detected by correctly opening and closing during each switch cycle.

U cross short circuit detection function

Main technical parameters：

Voltage: 24V DC/AC

Power consumption: 6.5W (without load)

● Output: 2N/O safety contact output 1N/C auxiliary output 4PNP transistor output

● 2 reserved function auxiliary outputs

Switching capacity: safety contact AC-15, 5A/250V DC-13, 6A/24V transistor PNP output 0.8A 24VDC

Pickup time:<50ms

Release time:<20ms

Hand synchronization time: 0.5S

● Anti interference performance: IEC61131-2
